Description

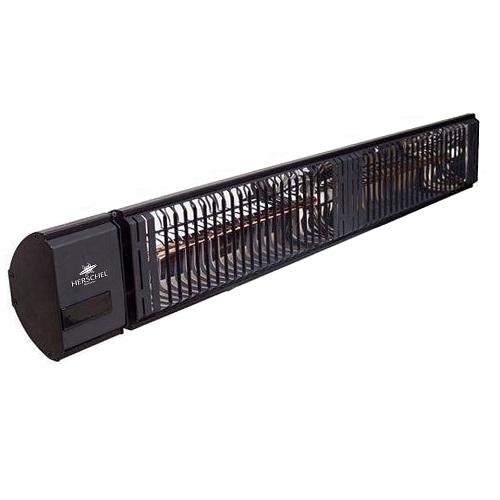

Also suitable for larger patio areas. Using Herschel’s low glare infrared lamps, the fast warm up time of the Manhattan is ideal for instant, powerful heat and is also suitable for indoor commercial environments that are particularly cold. Mirror reflectors ensure that the heat projects forwards and the aluminium construction ensures long lifetimes.
The Manhattan can be both wall and ceiling-mounted offering fantastic versatility for all locations. The Manhattan is supplied with a handy remote control, with 50% (1.5kW) and 100% (3kW) power levels, and 24 hour timer settings. The remote can also be bypassed where hardwire control is preferred via a switching device such as a push button timer or thermostat. Note: when operated in ‘remote bypass mode’ the heater can only be operated at full power.
Manhattan’s IP54 protection rating makes it splashproof and suitable for outdoor use. The heater does not come with a plug and requires professional installation by a suitably qualified electrician.
Power Requirements
| Rated Voltage (V) | 230V 50/60Hz |
| Rated Current (A) | 13 amps |
| Fuse/Circuit Breaker Rating (A) | 13 |
| Heated Areas: | Indoors | Outdoors |
| Heated zone @ 100% power from 1.8m height | 12 – 22m2 | 9 – 14m2 |
Technical Specifications
| Rated Power: Heating Element: Reflector: Body: Dimensions: Warm-up time: Peak wavelength: Weight: Warranty: Cable Length: Protection: | 3000W at 230V Premium low glare heating lamps Mirror Aluminium (98% reflection preventing rearward heat loss) Aluminium, in a black finish 104.5 x 15 x 8.5 cm 2 seconds 2 – 5µm 4.2kg 2 Years (excludes lamp) 2m IP54 |
Quality & Safety
IEC 60335-1; 60335-2-30 Electrical & Construction Safety Tested
RoHS compliant
Guarantee: 24 months: excludes lamp.
