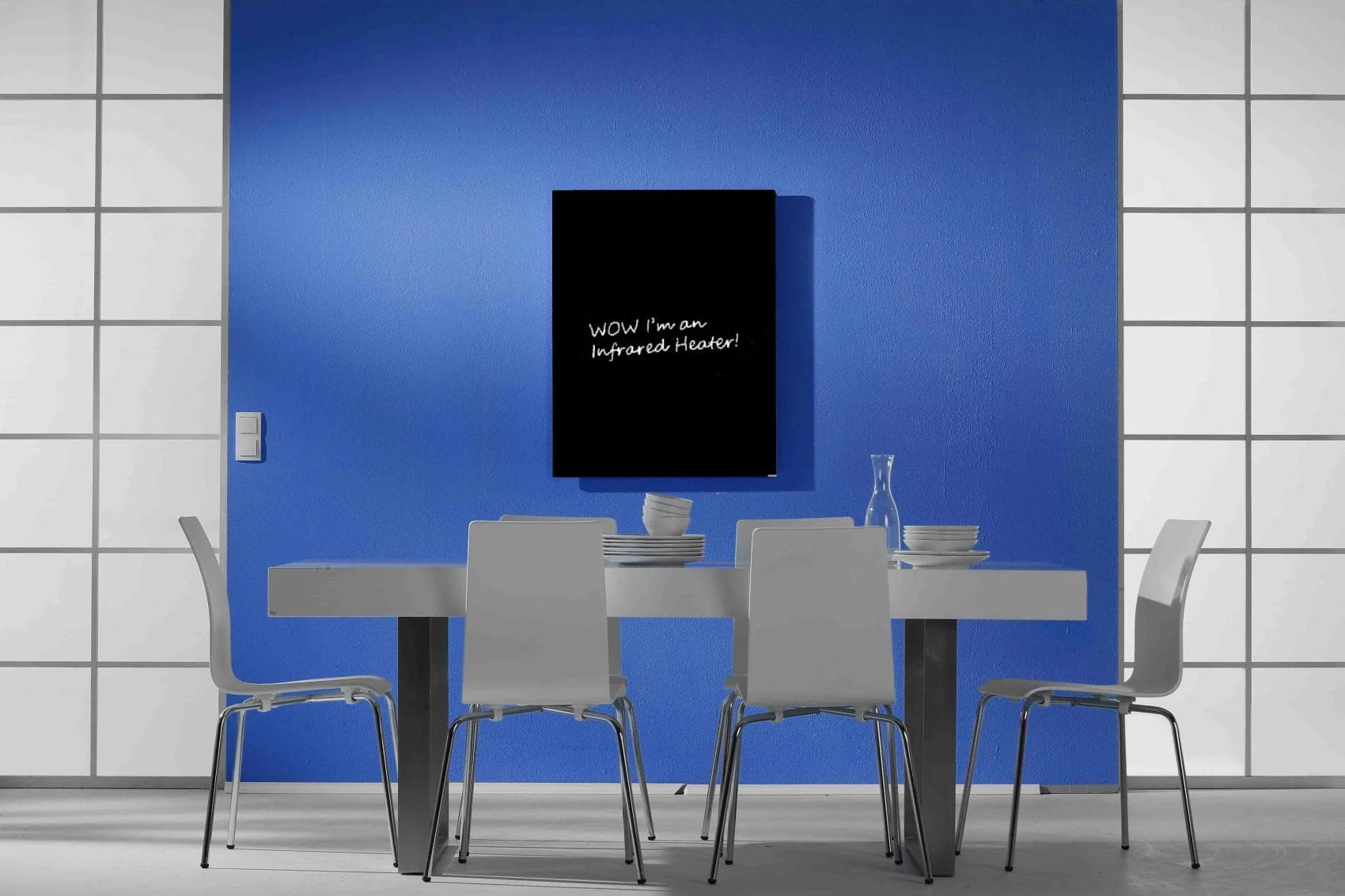

Herschel Inspire – Blackboard Heater

Herschel iQ MD2 Wired Thermostat

MD2 is wired directly to the mains circuit and to the heaters and requires recessing into the wall. If this is not practical consider the Herschel iQ T2 Wireless Thermostat.

The MD2 thermostat will operate your Herschel heater(s) by turning them on if the room temperature is lower than the desired temperature and turning them off once the desired temperature is reached. The MD2 is easy to operate, featuring a large digital touchscreen display and incorporates the latest EcoDesign energy-saving features including Herschel’s open window technology.

MD2 has a keypad locking feature to prevent unauthorised tampering making it suitable for commercial applications such as hotels, care homes, student accommodation and let properties.  The MD2 is a 16 amp thermostat enabling up to 3.6 kW of Herschel heaters to be connected.

Functions include:

• Optional App control via the SmartLife app;
• 7 x 1 day programmable, 6 periods per day;
• “Comfort” and Economy modes;
• Window Open Function (shutting off the heating if a rapid drop in temperature is detected until you override this or wait 1 hour);
• Time of Day;
• Target Temperature control (up to 45°C, making it suitable for specialist high temperature applications such as hot yoga studios);
• Keypad lock.

Other Features:

• 16 Amp peak load at 230 volts;
• Radio Frequency 433Mhz;
• 200m wireless range (if unobstructed);
• 24 month warranty*;
• Herschel Infrared heaters together with the iQ MD2 are fully compliant with EC Directive 2009/125/EC for Ecodesign of local space heaters.

Technical Information:

Note: Herschel iQ controls will only work with Herschel heaters.   *Attempted use with any other heater brand will invalidate the warranty.

£70.00 Original price was: £70.00.£60.00Current price is: £60.00.Add to basket

Herschel IQ – T2 Single Zone Control

Herschel IQ – T2 Single Zone Control – Product Description

The perfect heating control for simple room use. It incorporates the very latest energy-saving technology and can operate stand-alone, or can pair to the SmartLife App to allow you to manage your heating via an App.

The T2 is very easy to control and very well designed and work seamlessly with Herschel’s infrared heating panels. This single zone control pack comes with an R2 receiver and a T2 thermostat.

What can the Herschel T2 Thermostat do?

The Herschel iQ T2 Wireless Thermostat has a very clear backlit digital control display and easy-to-use functions including:

• Time of Day;
• Target Temperature control;
• 7 x 1 day schedule with 4 times of day; Eco and Manual modes;
• Window Open Function (shutting off the heating if the temperature drops more than 2°C in a 15 minute period until you override this or wait 1 hour);
• “Adaptive Start” that ensures your room is always at the right temperature with the least energy use;
• Wall-mounted or Free-standing.

What can the Herschel iQ R2 Receiver do?

The iQ R2 Wireless Receiver has the following additional capabilities:

• 1 hr “Boost” function;
• Unlimited R2’s can be paired to a T2,to control more heaters in the house (all receiving identical commands from the T2).
• Acts as internet gateway for the T1 when app control using the SmartLife app is wanted.

What are the other features of the single zone control system from Herschel iQ?

• 10 Amp maximum load;
• Radio Frequency 433Mhz;
• 35m effective RF range;
• 24 month warranty;
• Herschel Infrared heaters together with the iQ Single Zone starter pack are fully compliant with EC Directive 2009/125/EC for Ecodesign of local space heaters.

You can add as many R2 receivers to a single T2 (e.g. is the room was very big).  However to manage a separate room, you should purchase a separate T2 Control Pack.

Herschel T2 Thermostat

Click to download installation guide!

Herschel R2 Receiver

Click to download installation guide!

Download the Smartlife App:

£69.00 Original price was: £69.00.£59.00Current price is: £59.00.Add to basket

Herschel iQ R2 Wireless Receiver

Technical information

When working with the T2 Single Zone Control, the R2 receives its commands from the T2. Multiple R2s can be added to a single T2 (e.g. if the zone is very big) but they will all receive the same commands from the T2. (And a new zone would require a separate T2 and R2s).

The first R2 in a zone acts as the internet gateway for the T2, allowing you to manage your heating from the SmartLife App.

An R2 can control up to 2kW of infrared heaters (10 amps) on a 230 volt circuit.

Other features:

• 10 Amp maximum load;
• Radio Frequency 433Mhz, 2.4GHz;
• 35m effective wireless range;
• 24 month warranty*;
• Herschel Infrared heaters together with the iQ Single Zone starter pack are fully compliant with EC Directive 2009/125/EC for Ecodesign of local space heaters.

Downloads

Quality and safety

Download the Smartlife App:

£38.00 Original price was: £38.00.£33.00Current price is: £33.00.Add to basket
